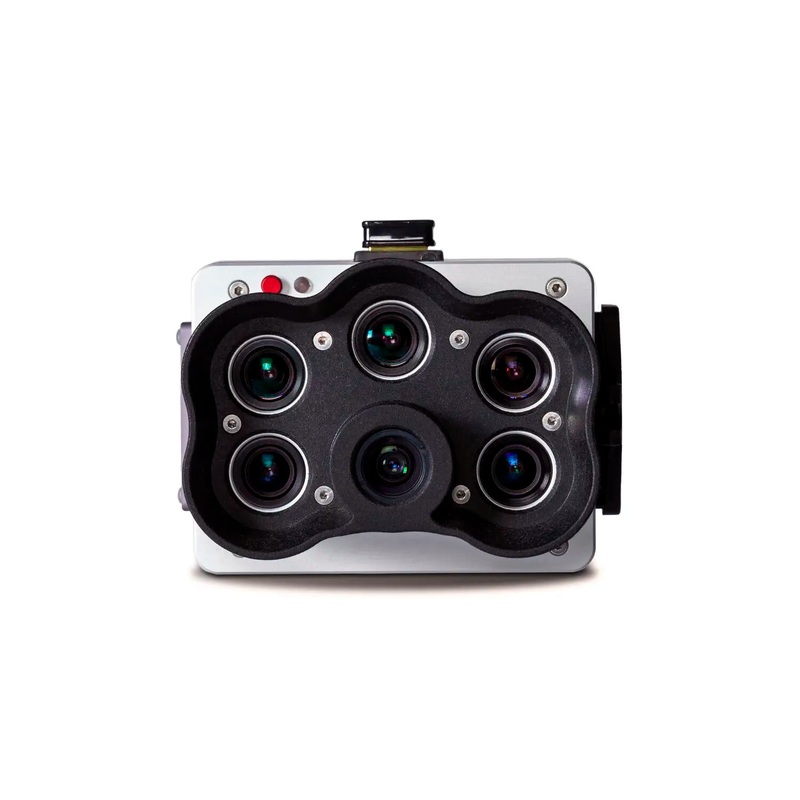

TheRedEdge-P is a single camera solution for synchronized capture of calibratedhigh-resolutionmultispectral andRGB imagery, with an optimized FOV and capture rate for efficient flights. It seamlessly integrates a high-resolution all-color imager with synchronized multispectral imagers toenablepan-sharpenedRGB and multispectraloutputs at2cm GSDfrom60m,unlocking extensiveanalysiscapabilities.

The sensor kit comes with: The RedEdge-P sensor, lens cover, a new professional removable storage standard in CFexpress, CRP 2 (the latest version of our calibrated reflectance panel), DLS 2 light sensor with integrated GPS, cables, mounting screws, hard carrying case.
Pan-sharpened resolution of:

• 2cm/pixel at 60m
• 4cm/pixel at 120m

Five spectral bans at 1.6mp each

CFexpress storage card for capture rate of 2-3 images per second

5.1MP panchromatic sensor

Specifications

• Weight: 300g (10.6 oz.) RedEdge-P + DLS 2
• Dimensions: 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)
• External power: 7.0 V – 25.2 V
• Spectral bands: Blue, green, red, red edge, near-IR (global shutter, narrowband)
• Wavelength (nm): Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
• RGB output: 5.1 MP (global shutter, aligned with all bands)*
• Ground sample distance: 7.7cm per pixel (per MS band) at 120m AGL/3.98cm per pixel (panchromatic band) at 120m AGL
• Capture rate: 2-3 captures per second raw DNG

Precision Multispectral Imaging for Advanced Crop Insights

Introducing the rugged, high-quality, powerful RedEdge-P with a new panchromatic band that provides a pan-sharpened output resolution of 2cm (at 60m); double the ground resolution of the industry-standard RedEdge-MX. Multispectral and RGB imagery are captured using a single camera solution which has an optimized FOV and capture rate for efficient flights.

By integrating an all-color high-resolution imager with synchronized multispectral imagers, this solution provides pixel-aligned outputs at previously unattainable resolutions while maintaining the reliability and efficiency of the RedEdge platform. The RedEdge-P raw data can be processed using standard software systems in the industry.

Why Buy From ?

When you purchase from , you get so much more than first class quality drones and drone parts:

• Expert support: get any questions you have regarding your drone and accessories answered by our drone experts.
• Fast, reliable shipping:we get your drone parts to you quickly and efficiently, with streamlined shipping options.
• Authorized Dealer: is an authorized reseller for leading drone brands, ensuring you’re always going to be purchasing authentic, high-quality products with manufacturer warranties.

Specifications

• Weight:300g (10.6 oz.) RedEdge-P + DLS 2
• Dimensions:8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)
• External power:7.0 V-25.2 V
• Spectral bands:Blue, green, red, red edge, near-IR(global shutter, narrowband)
• Wavelength (nm):Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
• RGB output:5.1 MP (global shutter, aligned with all bands)*
• Ground sample distance:
  • o7.7cm per pixel (per MS band) at 120m AGL
  • o3.98cm per pixel (panchromatic band) at 120m AGL
• Capture rate:2-3 captures per second raw DNG
• Interfaces:4 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 port for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage.
• Field of view:o49.6 HFOV x 38.3 VFOV (MS)o44.5 HFOV x 37.7 VFOV (PAN)
• Triggering options:Timer mode, overlap mode, external trigger mode (PWM, GPIO,serial and Ethernet options), manual capture mode
• Heat:0-40C ambient (no airflow); 0-50C ambient with airflow >0.5m/s

* with appropriate post-processing

Note: Specifications are subject to change without notice
