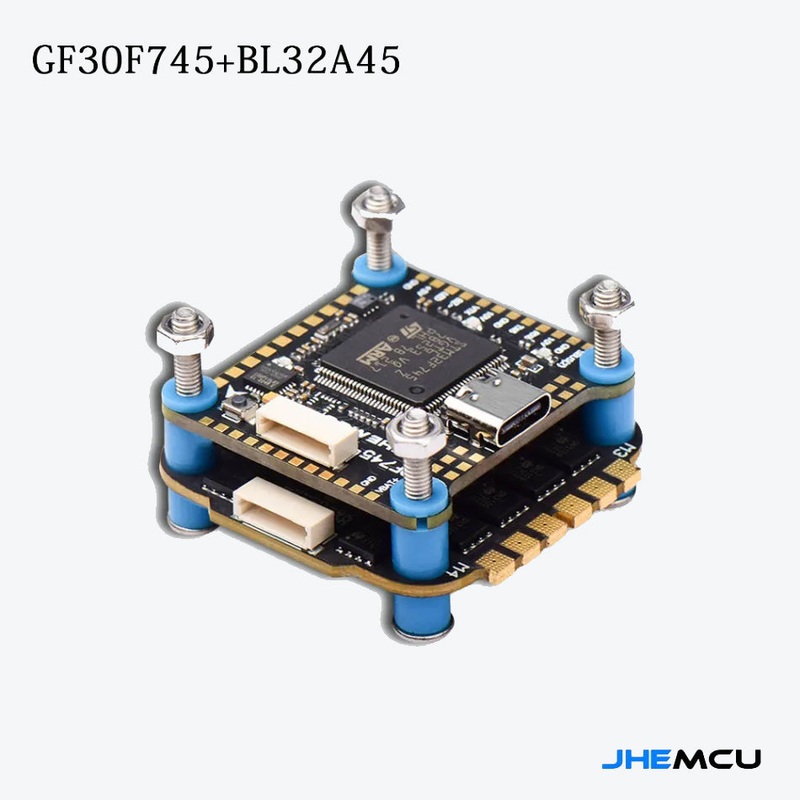

JHEMCU GF30F745-MPU 3-6S Flight Controller – 30x30mm

Check out all our 30x30mm Flight Controllers and the rest of our JHEMCU Products!

Specifications:

• Chip:STM32F745VG(216MHZ)
• Gyro:MPU6000
• Barometer:DPS310
• OSD Chip:AT7456E
• Black box:16MM
• LED Program:Support
• BB buzzer:Support
• Input voltage:3-6S
• I2C Connector:Support
• BEC:5V/2.5A
• BEC:10V/2.0A
• Cam Input:Support
• USART:UART1,UART2.UART3.UART4.UART6.UART7
• Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
• GPS:YES
• COMPASS:YES
• HD O3:YES
• ESC Signal:Dshoot150.Dshot300,Dshot600
• USB:TYPE-C
• Current Port:Yes.
• Voltage Sensor:Yes
• DFU Button:YES
• FC firmware:betaflight_4.4.2_JHEF745.HEX
• Instal hole:30.5*30.5*4MM
• Board size:36*36MM
• Weight:7.5g

Package Includes:

• 1 x JHEMCU GF30F745-MPU 3-6S Flight Controller – 30x30mm
